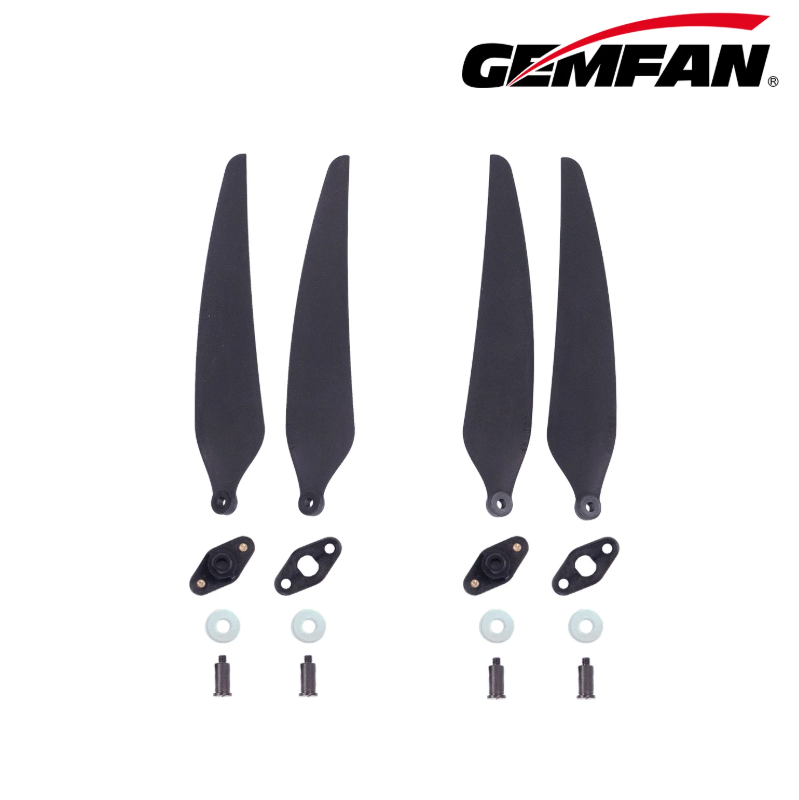

1608F Folding 2 Blade Glass Fiber Nylon

The Gemfan F1608-2 is a large-scale foldable two-blade propeller developed specifically for large-wheelbase multirotor UAVs. Constructed from durable PC (polycarbonate), it features a 16-inch (406.4 mm) diameter and 8-inch pitch, delivering high aerodynamic efficiency, stable thrust, and extended flight endurance for professional drone applications.

Designed for portability and convenience, the F1608-2 offers two hub mounting options—metal and plastic—to accommodate different installation requirements. Its foldable blade design allows for compact storage and easy transportation without compromising structural strength, making it an excellent choice for field operations and outdoor missions.

Key Features

• Foldable two-blade propeller for large-wheelbase UAVs

• Dual hub options with metal and plastic mounting solutions

• Lightweight design for improved flight efficiency and endurance

• High-strength PC construction for durability and impact resistance

• Foldable structure for convenient transport and storage

• Optimized for industrial and professional UAV applications

Applications

• Large-wheelbase multirotor UAVs

• Industrial inspection drones

• Aerial photography and mapping platforms

• Agricultural UAVs

• Professional outdoor flight operations

Features & Advantages

Foldable for Easy Transportation

The foldable blade structure significantly improves portability, allowing quick deployment and convenient storage during field operations.

Dual Mounting Options

Compatible with both metal and plastic hub systems, providing flexible installation solutions for a variety of UAV platforms.

High Flight Efficiency

The two-blade aerodynamic design reduces drag while maintaining excellent thrust efficiency, helping extend flight time and improve overall performance.

Stable & Reliable Performance

Precision-balanced blades provide smooth power delivery, reduced vibration, and consistent flight characteristics across a wide operating range.

Durable PC Construction

Manufactured from premium polycarbonate for excellent impact resistance, fatigue resistance, and long service life under demanding flight conditions.

Specifications

• Type: Gemfan F1608-2

• Material: PC (Polycarbonate)

• Color: Black

• Prop Diameter: 406.4 mm (16 inch)

• Pitch: 8 inch

• Center Thickness: 13.5 mm

• Center Hole Inner Diameter: 6 mm

• Max Prop Width: 35.5 mm

• Weight (per prop): 43.03 g

• Recommended Motor: 4720

• Maximum Takeoff Weight: 6 kg
