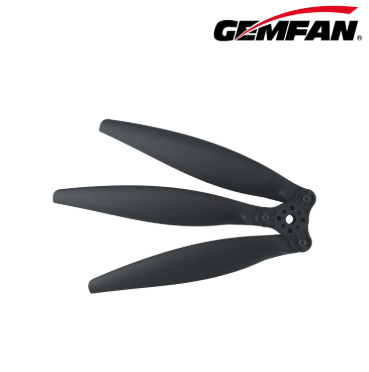

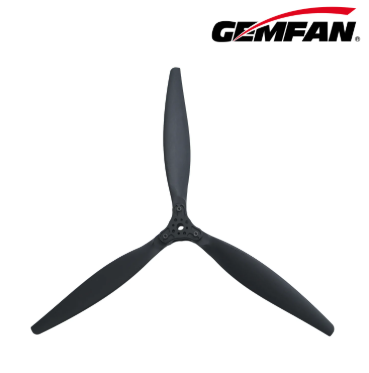

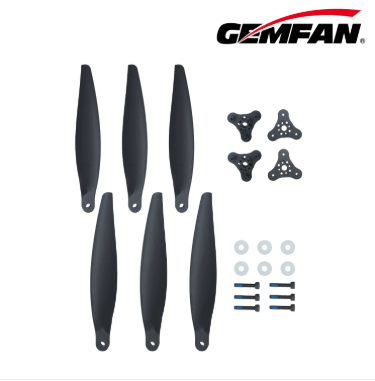

2010F Folding 3 Blade Glass Fiber Nylon
Type:Gemfan F2010-3 Material:glass fiber nylon prop+metal adapter Pitch:10in Colour:black Prop Diameter :508mm Center Thickness:22.6mm Center Hole Inner diameter:10mm Max Prop Width:41.8mm
Product Overview
The Gemfan F2010 is a large-scale tri-blade folding propeller engineered for big-wheelbase, heavy-payload multirotor platforms. With a 508 mm (20-inch) diameter and a 10-inch pitch, it delivers powerful, efficient thrust for demanding flight missions. The blades are molded from imported glass fiber nylon and feature a special reinforced design for long-term durability, while the aluminum alloy prop clamp ensures a secure, precise connection between propeller and motor. The folding structure keeps the aircraft compact during transport and storage—and by folding on impact, it helps protect both the airframe and the propeller—providing portability while safeguarding every flight. Weighing only 180 g per propeller, the F2010 supports quadcopter builds with takeoff weights of up to 20kg, combining strength, safety, and convenience in one design.
Key Features
Tri-blade folding design tailored for large-wheelbase, heavy-load platforms
20-inch diameter / 10-inch pitch for strong thrust and efficient power delivery
Special reinforcement at critical stress points for extended service life
Imported glass fiber nylon blades for strength and toughness
Aluminum alloy prop clamp for a secure, reliable motor fit
Compact folded profile for easy transport and storage
Applications
Heavy-payload quadcopters and industrial multirotors
Large-wheelbase aerial platforms
Missions requiring portability without compromising flight safety
Builds demanding stable, efficient, and dependable propulsion
Features & Advantages
High-Payload Propulsion
The generous 508 mm (20 in) diameter and 10 in pitch move a large volume of air per revolution, delivering the strong, stable thrust required by heavy-lift quadcopter platforms with takeoff weights around 7218 g.
Folding Design for Portability & Safety
The blades fold close to the fuselage during transport and storage, dramatically reducing the aircraft’s footprint. On landing or in the event of contact, the folding action helps absorb impact energy, protecting the propeller, motors, and airframe—so every flight ends as safely as it begins.
Reinforced Structure
Special strengthening at critical sections helps the blades maintain their shape and performance under high load, extending service life and reducing the risk of in-flight failure.
Premium Imported Materials
Imported glass fiber nylon gives the blades an excellent balance of rigidity, impact resistance, and fatigue endurance, while the efficient 41.8 mm blade width keeps overall system performance consistent and reliable.
Secure Aluminum Alloy Prop Clamp
The aluminum alloy clamp, matched to a 10 mm center hole and 22.6 mm center thickness, locks the propeller firmly in place, ensuring safe, vibration-free power transmission flight after flight.
Specifications
| Item | Parameter |
|---|---|
| Type | F2010 |
| Material | Glass fiber nylon blades / metal prop clamp |
| Pitch | 10 in |
| Colour | Black |
| Prop Diameter | 508 mm |
| Center Thickness | 22.6 mm |
| Center Hole Inner Diameter | 10 mm |
| Max Prop Width | 41.8 mm |
| Weight | 180 g |
| Recommended Motor | 7218 |
| Takeoff Weight | 20 kg (quadcopter) |
