Acrylic coated fiberglass cloth

Product Details:• Place of Origin: Jiangsu China• Brand Name: Pinyi• Certification: ISO 9001, SGSPayment & Shipping Terms:• Minimum Order Quantity: 100 Meter

Products Introduction：

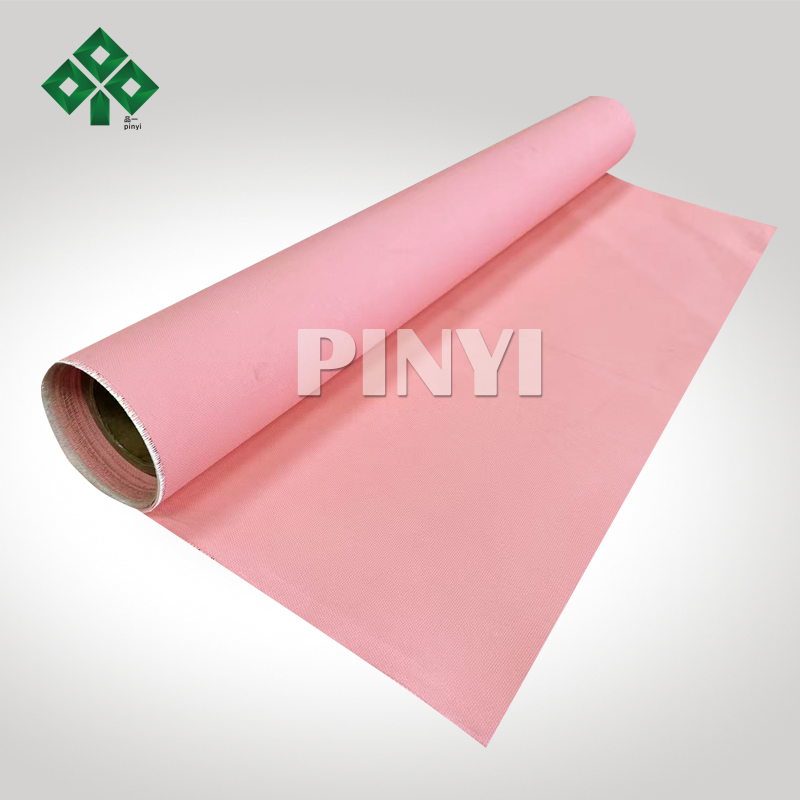

Acrylic coated fiberglass cloth is a high-performance composite material constructed by coating a woven fiberglass base cloth with high-quality acrylic resin. The fiberglass base provides exceptional mechanical strength and thermal stability, while the acrylic coating enhances key properties such as weather resistance, chemical resistance, and flexibility. This product combines the structural advantages of fiberglass with the functional benefits of acrylic, making it suitable for a wide range of industrial, architectural, and protective applications.

Core Features：

  • Excellent Thermal Stability: The fiberglass base cloth resists high temperatures (typically 150–550°C continuous use, up to 1000°C for short periods), while the acrylic coating maintains integrity without cracking or peeling under moderate heat.

  • Superior Weather Resistance: The acrylic coating forms a barrier against UV radiation, rain, humidity, and ozone, preventing fiberglass degradation and ensuring long-term outdoor durability (service life up to 5–8 years in harsh environments).

  • Good Chemical Resistance: Resistant to most weak acids, alkalis, oils, and organic solvents (e.g., ethanol, glycerin), making it suitable for use in chemical processing or industrial cleaning scenarios.

  • High Tensile Strength: Inherits the high strength-to-weight ratio of fiberglass, with longitudinal tensile strength ≥ 300 N/25mm and transverse tensile strength ≥ 200 N/25mm (varies by thickness).

  • Flexibility & Workability: The acrylic coating softens the rigid fiberglass base, allowing the cloth to be easily cut, folded, or wrapped around irregular surfaces (e.g., pipes, equipment) without fraying.

  • Waterproof & Moisture-Proof: The dense acrylic coating blocks water penetration, with a water absorption rate ≤ 2% after 24-hour immersion in room-temperature water.

 Technical Specifications:

Parameter Category Specification Details
Fiberglass Base Cloth Material: E-glass (alkali-free fiberglass); Weave Type: Plain weave / Twill weave
Acrylic Coating Material: Water-based/acrylic resin; Coating Weight: 50–150 g/m² (single-sided/double-sided)
Thickness 0.40–0.80 mm (base cloth + coating)
Weight per Unit Area 450–800 g/m²
Width Standard: 1000 mm / 1220 mm; Customizable: 500–2000 mm (on request)
Color Standard: White / Gray; Customizable: Black, Blue, Green ，Pink(via pigment addition)
Continuous Use Temperature -40°C to 500°C
Adhesion Strength <span style="color: rgba(0, 0, 0, 0.85); font-family: Inter, -apple-system,
