Bakelite Sheet Design for High-Volume CNC Milling in 2026

Understanding Bakelite Sheet Design for High-Volume CNC Milling Needs

Manufacturers sourcing insulation materials for automated tooling programs face a recurring challenge: finding a laminate that machines cleanly, holds tight tolerances across thousands of parts, and remains cost-efficient when produced at scale. Bakelite Sheet design for high-volume CNC milling addresses exactly this requirement, and Shenzhen Xiongyihua Insulation Materials Co., Ltd., operating under the brand XYH Plastic Insulation, has built its manufacturing platform around this specific production model.

Founded on September 26, 2006, and headquartered at No. 2 of Longxian Road, Xinsheng Community, Longgang Street, Longgang District, Shenzhen, Guangdong, China, the company has developed an integrated production system that connects raw material fabrication directly with CNC precision machining, a combination that is particularly relevant to buyers evaluating bakelite sheets for repeat, high-volume fabrication runs.

What Makes Bakelite Sheet Suitable for CNC Milling

Material Composition and Mechanical Properties

The company’s Bakelite Sheet, formally identified as the 3021 Phenolic Paper Laminated Sheet, is positioned as a cost-effective, high-rigidity structural insulation sheet for fixture fabrication and medium-voltage electrical setups. Its core mechanical profile includes a flexural strength of at least 120 MPa and a compressive strength of at least 250 MPa, allowing the material to resist deformation under sustained mechanical pressure — a critical factor when a single sheet must withstand repeated milling, drilling, and tapping cycles during high-volume order fulfillment.

Dielectric performance is equally defined: the sheet delivers a dielectric strength of at least 12.1 KV/m perpendicular to laminations, making it suitable for distribution boards and switchboxes where basic electrical isolation is required alongside mechanical stability. The material’s density ranges from 1.45 to 1.5 g/cm³, and it maintains continuous heat resistance between 100°C and 120°C, properties that remain stable through extended machining sessions common in bulk production.

Machinability and Anti-Static Options

For teams designing components intended for high-volume CNC milling, machinability is the deciding factor. The 3021 Bakelite Sheet is engineered to be easily milled, drilled, and tapped without chipping, which directly supports faster jig and fixture manufacturing cycles and reduces tool wear during long production runs. The sheet is also available in Electrostatic Discharge (ESD) configurations, with resistance ranging from 10⁶ to 10⁹ ohms, an option specifically intended to safeguard sensitive electronics during assembly and testing.

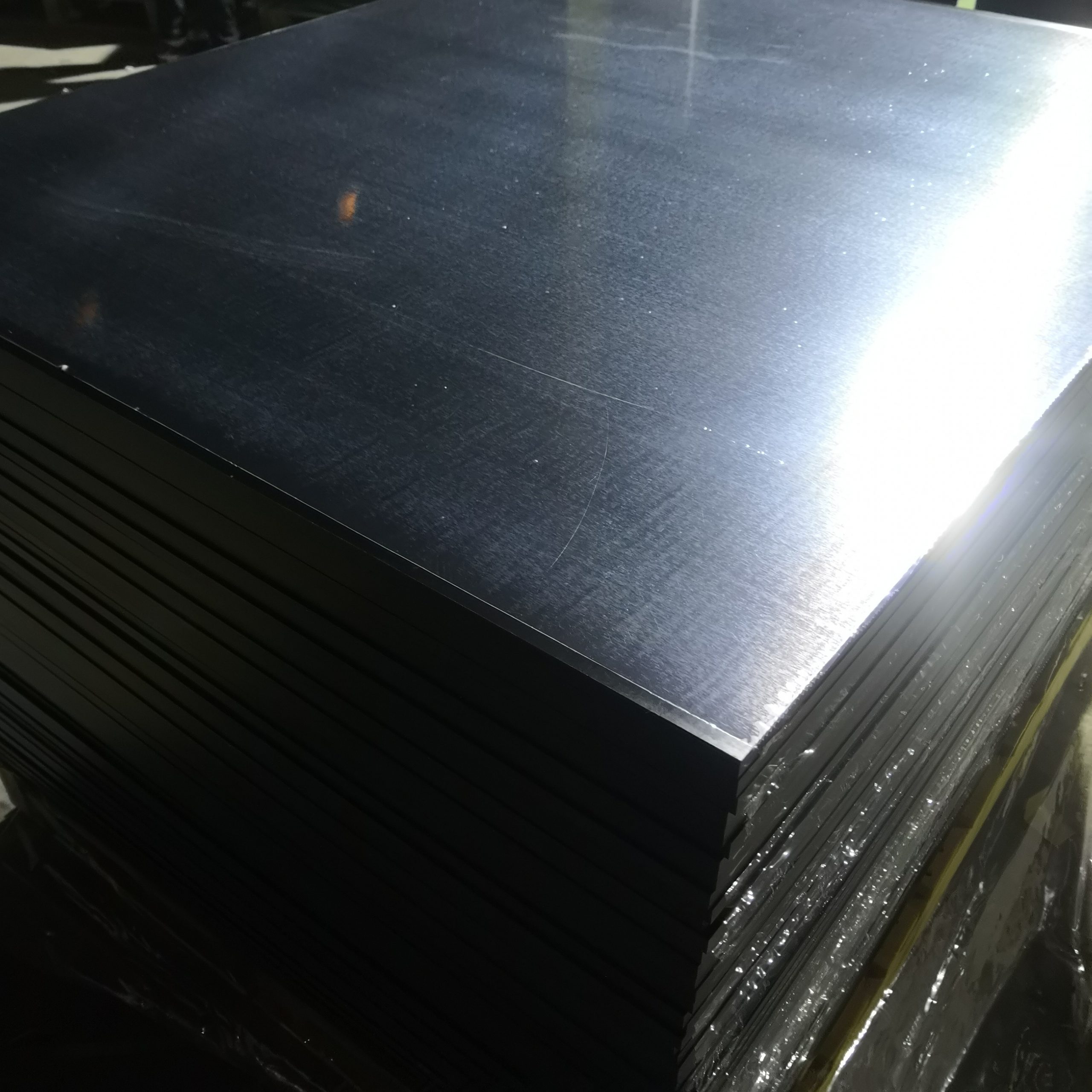

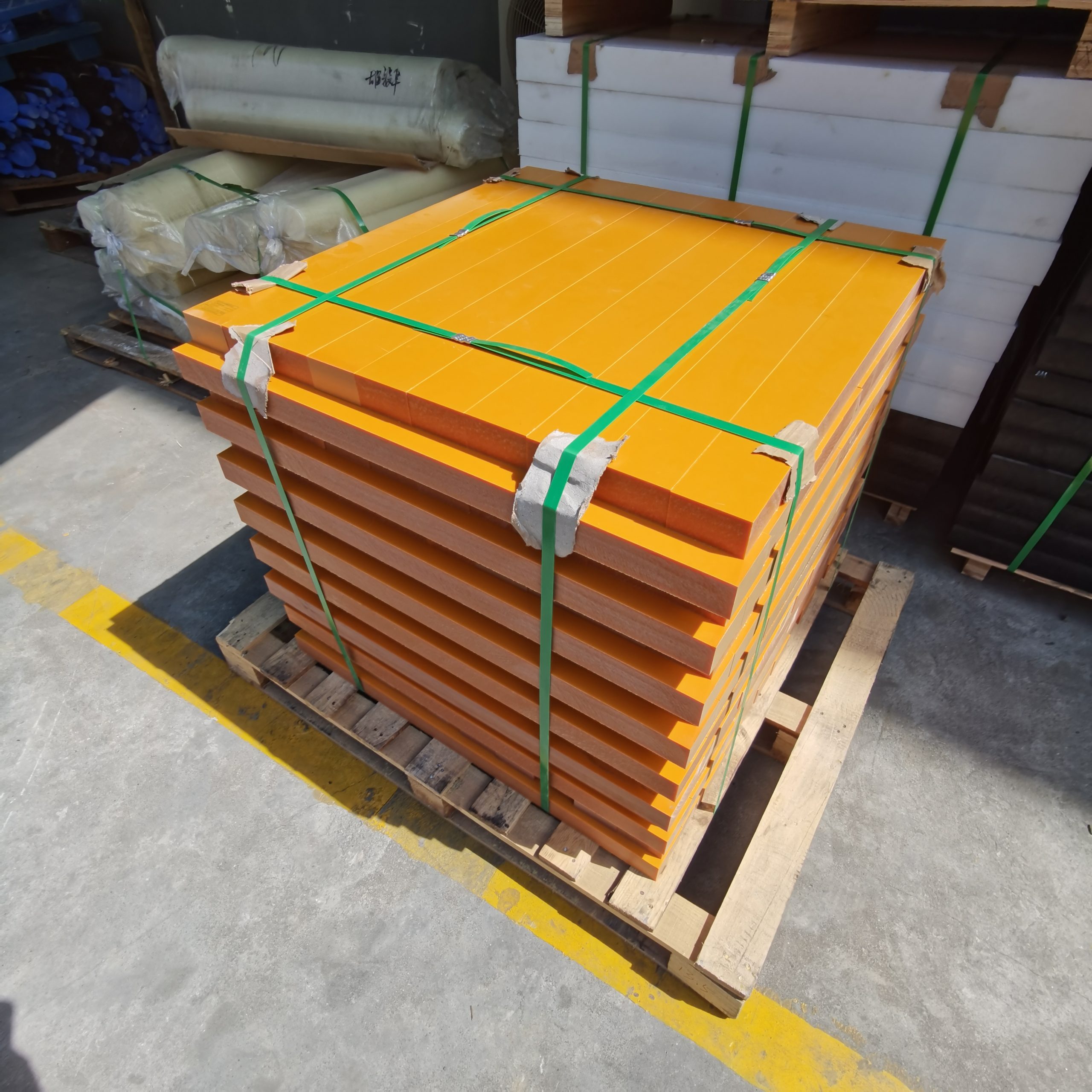

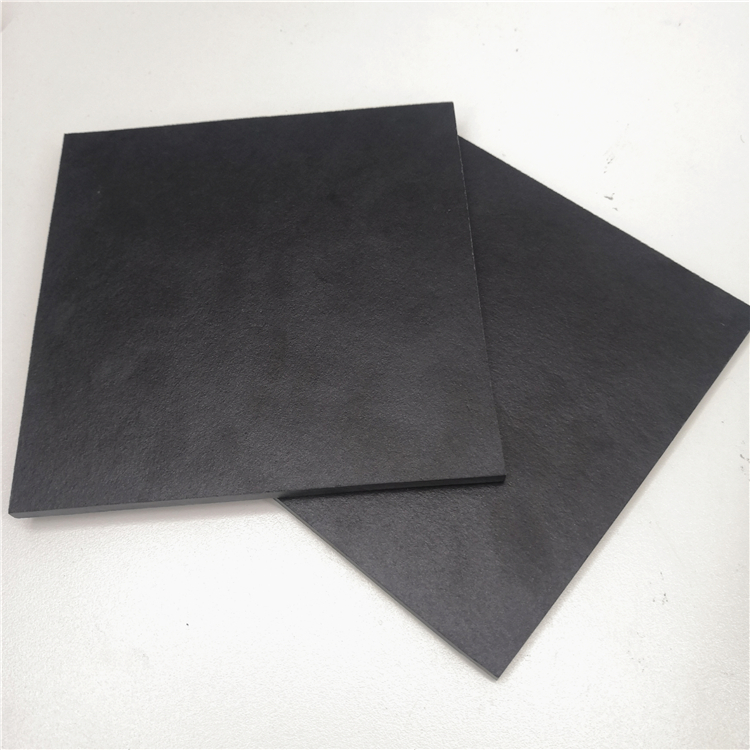

Delivery formats include orange and black sheets in thicknesses ranging from 3mm to 100mm, along with custom CNC-machined components tailored to project specifications. Typical industry applications include ICT/ATE test fixtures, silicon rubber keypad molds, distribution switchboxes, and desktop grinding pads — all environments where dimensional consistency across large batches is essential.

Engineering High-Volume Production with XYH Plastic Insulation

Manufacturing Infrastructure and Capacity

High-volume CNC milling programs depend on consistent raw material availability and machining capacity. XYH Plastic Insulation integrates complete in-house sheet and rod manufacturing with over 100 advanced CNC engraving machines, supported by a 5,000-square-meter warehouse holding more than 1,000 tons of raw materials. This infrastructure is designed to guarantee rapid delivery and tight-tolerance production matching customized specifications, which is particularly relevant for buyers who need bulk quantities of bakelite components produced without extended lead times.

The company’s service model is described as a One-Stop Integrated Solution combining raw material production, custom design assistance, CNC precision fabrication, and global logistics. This structure allows a single supplier relationship to cover the full path from material selection consulting through sample prototyping, high-volume CNC milling and drilling, and after-sales support.

Quality Systems and Certifications

For manufacturers evaluating a supplier for repeat, high-volume orders, documented quality systems matter. XYH Plastic Insulation holds IATF 16949:2016 Quality Management System Certification for the production of insulating plastic materials, along with ISO 9001:2015 and ISO 14001:2015 certifications covering production, processing, and sales of electronic insulation materials and engineering plastic materials. The company states full adherence to IATF 16949 quality guidelines with zero-defect quality control as part of its service assurance commitments, alongside SLA commitments on delivery timelines.

Design Considerations for High-Volume CNC Milling Projects

Digital Workflow and File Compatibility

Bakelite Sheet design for high-volume CNC milling typically begins with a digital model that must translate accurately into machining paths. XYH Plastic Insulation supports integration with mainstream CAD/CAM file formats, including .dwg, .dxf, .step, and .pdf, enabling direct digital manufacturing from customer drawings. This capability allows custom CAD or 3D models to be translated directly into automated CNC milling paths, which minimizes material waste and helps ensure exact-tolerance manufacturing across large batches. Strict data protection protocols are applied to proprietary client drawings throughout this process.

Delivery Timelines and Service Model

Production scheduling is a key concern for high-volume buyers. According to the company’s delivery model, bulk standard materials are shipped within 3 to 7 working days, while complex CNC-machined projects are completed and packaged within 15 to 20 working days. Dedicated customer service representatives provide technical consultation on material selection, and drawing verification is performed by senior engineers prior to production, reducing the risk of costly rework once milling begins at scale.

Proven Application in Precision Fixture Manufacturing

The relevance of bakelite sheet machining to high-volume operations is illustrated in the company’s documented work with a prominent global electronics contract manufacturer that required high-precision fixture boards for smartphone circuit board testing. The business scenario involved high-speed electrical testing on automated assembly lines, where minor substrate warping or static accumulation causes circuit failures. XYH Plastic Insulation supplied custom-machined antistatic Bakelite sheets (ESD Bakelite) with exact thickness tolerances and flat finishes. The documented results included a 98% defect-free test rate and a 50% reduction in manual calibration time, ultimately contributing to a 20% increase in daily assembly line throughput while eliminating static discharge damage during testing.

Conclusion

Bakelite Sheet design for high-volume CNC milling requires a combination of stable mechanical properties, reliable machinability, digital workflow compatibility, and manufacturing capacity capable of sustaining bulk output. Through its 3021 Phenolic Paper Laminated Sheet, integrated CNC production infrastructure, certified quality systems, and documented fixture-manufacturing results, Shenzhen Xiongyihua Insulation Materials Co., Ltd., under the XYH Plastic Insulation brand, presents a manufacturing approach structured specifically around these requirements for buyers evaluating insulation materials for large-scale precision fabrication programs.
