DRW-330 Microplate Washer System For ELISA Testing Accuracy

Laboratories running enzyme-linked immunosorbent assays depend on more than antibodies and reagents to deliver trustworthy results. The equipment that prepares each microplate for analysis plays a decisive role in whether an ELISA test produces clean, reproducible data or noisy, inconsistent readings. Among the companies addressing this need directly is Wuxi hiwell-diatek instruments co.,ltd, operating under the brand name Diatek, a direct manufacturer positioned as a provider of standardized, high-precision laboratory diagnostic equipment focusing on automated washing solutions for clinical and hospital environments.

Understanding the Washing Challenge Behind Every ELISA System

Before any plate reaches the detection stage of an ELISA workflow, it must be washed thoroughly to remove unbound substances that would otherwise distort results. Diatek’s industry pain point insight identifies the recurring obstacles laboratories face in this stage: cross-contamination between wells, tube blockages within washing equipment, and the persistent need for high-precision cleaning to maintain assay integrity. These are not minor inconveniences. Manual washing inconsistency, high residual volumes affecting assay results, and frequent equipment downtime due to crystallized buffer blockages are the specific pain points that Diatek’s engineering team has worked to eliminate through its DRW-330 Elisa Microplate Washer.

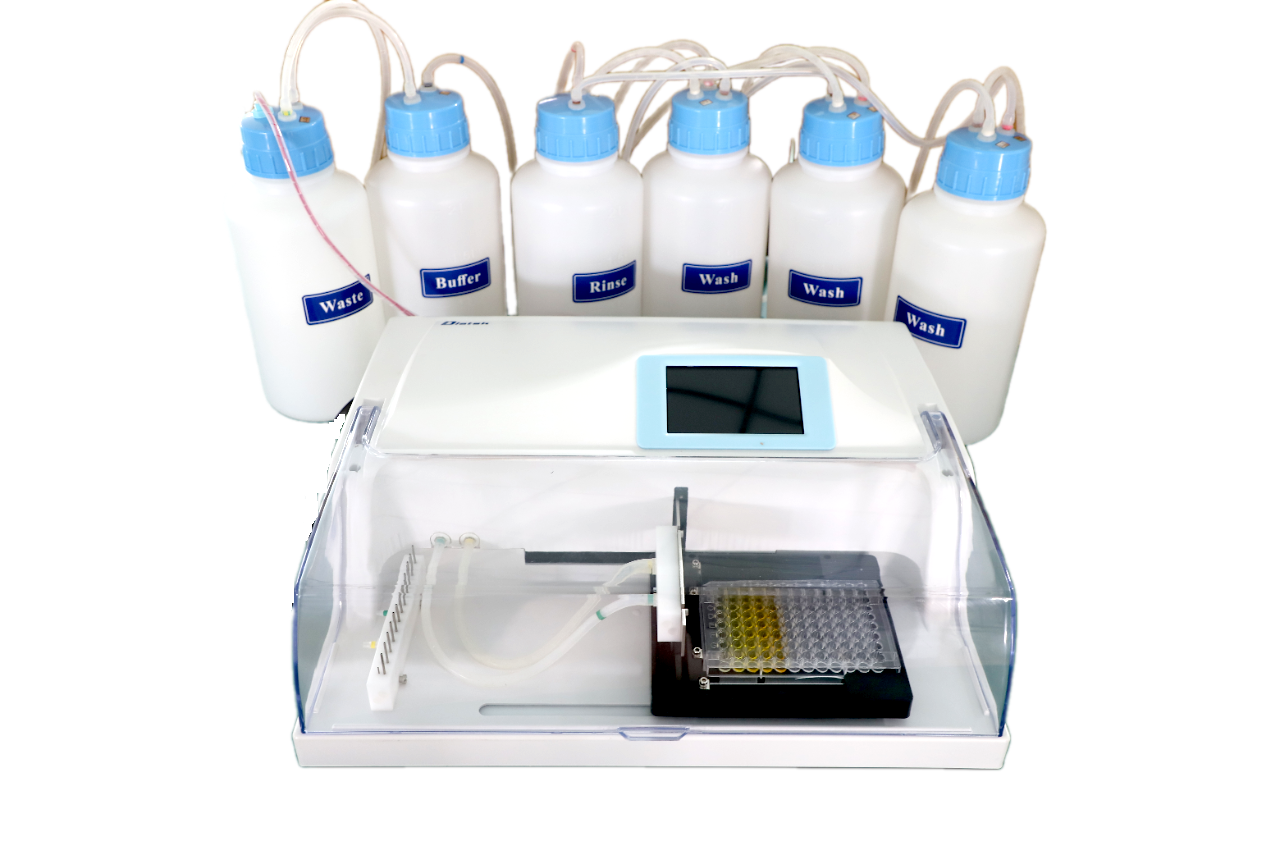

The DRW-330 Elisa Microplate Washer: Purpose-Built for Precision

The DRW-330 is described by Diatek as a versatile, standalone automated washer designed for thorough cleaning of 96/48 well microplates in ELISA and other laboratory assays. Its value proposition is organized around three pillars that directly respond to the pain points identified above.

The first is enhanced assay accuracy. Two-point liquid suction and thorough bottom washing reduce residual volume to ≤1μl/well, minimizing background noise in sensitive assays. For laboratories where even small amounts of residual liquid can skew optical density readings, this level of control is central to maintaining test integrity.

The second pillar is operational workflow efficiency. An intuitive 4.3-inch capacitive touchscreen paired with a large internal memory storing 600 protocols allows technicians to operate the DRW-330 as a standalone unit without needing external PC control. This design reduces the complexity typically associated with programming multi-step washing sequences and allows staff to move between protocols quickly during high-volume testing periods.

The third pillar is reliability and maintenance reduction. Automated rinsing cycles run before and after procedures to prevent tube blockages, directly addressing the crystallized buffer issue that causes downtime in many laboratory settings. This automated maintenance approach is intended to extend equipment availability over the long term.

Core Features Supporting Every Stage of Plate Processing

The DRW-330 is built with a feature set that reflects the technical demands of modern ELISA laboratories. Its 4.3-inch capacitive touchscreen provides a user-friendly interface for simplified protocol programming and standalone operation. High-precision manifolds, available in 8-pin and 12-pin configurations, accommodate different plate orientations, while universal well compatibility allows the unit to support flat, V-bottom, and U-bottom 96/48 well microplates.

For assays requiring extended processing, the DRW-330 offers adjustable deep cleaning with programmable soak and shake times of up to 24 hours, ensuring thorough plate treatment rather than a one-size-fits-all wash cycle. Flexible washing modes support both individual strip washing and whole plate washing, giving laboratories the ability to match the wash process to the specific test being run.

Safety considerations are also built into the system. Waste bottles are equipped with an overflow alert function to prevent laboratory contamination, and an emergency stop function allows users to immediately pause or terminate programs during the washing cycle. Fine adjustment of wash liquid pressure and aspiration, or sip, time between 0.1 and 9.9 seconds gives operators granular control over how each plate is treated, while the 600-protocol memory ensures that varied laboratory requirements can be stored and recalled without reprogramming.

Technical Highlights and Customization for Specialized Testing

Beyond its standard configuration, the DRW-330 incorporates two-point liquid suction technology as its core cleaning method, along with independently managed wash and rinse channels. These channels can be expanded from 2 to 4 channels, giving laboratories flexibility as their testing needs grow. The system also supports magnetic bead ELISA washer customization. According to Diatek, DRW-330 magnetic bead washers are used across biomedical research, clinical diagnostics, and drug development settings, where their core function is to automatically, efficiently, and gently wash magnetic beads in bead-based assays, removing unbound substances to ensure the accuracy and reproducibility of experimental results. Its technical metrics include a liquid volume range of 10 to 9999μl per well and wash cycle programming from 1 to 9999 times, covering a wide span of assay requirements within a single instrument.

Quality Certifications Backing the Equipment

Diatek’s manufacturing standards are reflected in its industry certifications, which include CE Certification for European market access, ISO 9001 Quality Management System Certification, and ISO 13485 Medical Devices Quality Management System Certification. These third-party certifications provide laboratories with documented assurance that the equipment is produced under recognized quality management frameworks appropriate for medical device manufacturing.

Global Service Model and After-Sales Support

As a direct manufacturer, Diatek operates on a factory direct supply model supported by dedicated online technical service. This billing and delivery approach removes intermediary layers between the laboratory and the manufacturer. Every DRW-330 unit is backed by a 1-Year Global Warranty, and customers receive online technical support services throughout the ownership period. This combination of factory direct supply and global warranty coverage is designed to give laboratories confidence regardless of their geographic location.

Where the DRW-330 Fits Across Laboratory Environments

The DRW-330’s industry adaptation spans hospital laboratories, where it supports standardized ELISA plate washing; clinical testing centers, where it serves high-throughput diagnostic workflows; and research institutions, which benefit from its customizable washing protocols for varied assays. More broadly, Diatek’s business scope covers healthcare, healthcare-focused hospital laboratories, biotechnology and clinical research, and biomedical research, with customer types including hospital laboratories, clinical testing facilities, and medical device distributors.

A Dependable Washing Component for ELISA-Based Testing Systems

For laboratories evaluating equipment to support their ELISA testing systems, the washing stage remains a determining factor in overall result quality. Diatek’s DRW-330 Elisa Microplate Washer addresses this stage directly through its two-point liquid suction technology, automated tube maintenance, expandable wash and rinse channels, and magnetic bead washing customization option. Combined with CE, ISO 9001, and ISO 13485 certifications, a 1-Year Global Warranty, and factory direct supply with dedicated online technical service, the DRW-330 offers hospital laboratories, clinical testing centers, and research institutions a standardized solution built specifically for the demands of precise, repeatable microplate washing within ELISA workflows.
