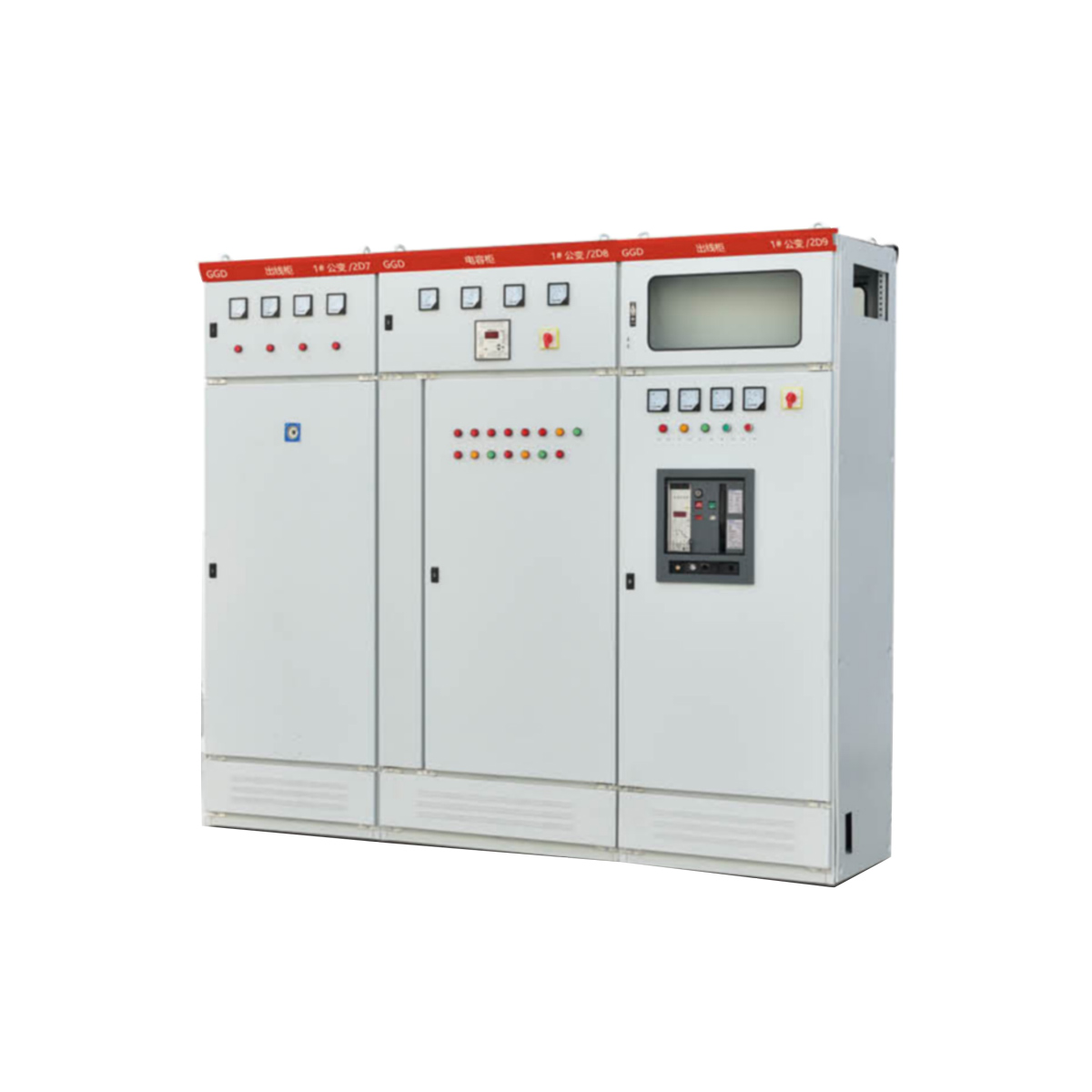

GGD Low-voltage switchgear assemblies

Overview

Since this device can effectively improve the power factor of the electrical load, reduce line losses, and enhance the actual load capacity oftransformers,it achieves significant energy-saving benefits.Additionally, by incorporating specific reactors into the system, it can efectively preventharmonic amplification and absorb the maiority of harmonic currents, ensuring that the total harmonic distortion rate and the content limits of eachharmonic current comply with national standards, thereby achieving the goal of harmonic mitigation, However, if ordinary contactors are used toswitch capacitor banks, this willresult in large inrush curents, slow compensation times, high maintenance costs, and a short service life. The reforewe recommend that users prioritize the use of dvnamic reactive power compensation devices in the following scenarios: substations, productiorworkshops, and low-voltage grids in civil buildings of industrial and mining enterprises, particularly in power distribution systems where loads frequently change and reactive power is unstable.

This product complies with the folowing standards: GB/T15576-2008 "Low-Voltage Complete Sets of Reactive Power Compensation Equipment'and lEC60439 “Low-Voltage Complete Sets of Switchgear and Control Gear."

Model Meaning

Terms of Use

▪ Ambient temperature: -5°C to +40°C ;

▪ Ambient relative humidity: no more than 90% (at 20°C );

▪ Altitude: no more than 2000 meters;

▪ The surounding environment must not pose an explosion hazard, contain gases that could damage or corode meta. or have conductive dust. The instalation siteshould not be subject to severe vibration or exposure to rain or snow.

Product Features

▪ High versatility: This compensation cabinet can be combined with various types ofcabinets from both domestic and international manufacturers, such as MNS, GCKGGD,etc.;

▪ Diverse and flexible capacitor compensation configurations: Supports Y-typecompensation, A-type compensation, and Y+A combined compensationconfigurations;

▪ Diverse communication methods: Equipped with RS-232/485 communicationinterfaces, wireless data transmission modules, or GPRS modules for long-distancecommunication；

▪ Accurate and safe control: Utilizes voltage zero-crossing triggering, with no surgecurrent during engagement and no high voltage generated during disengagement;

▪ Long service life: With no maintenance required, the service life exceeds 100,000 hours.

Main Technical Parameters
