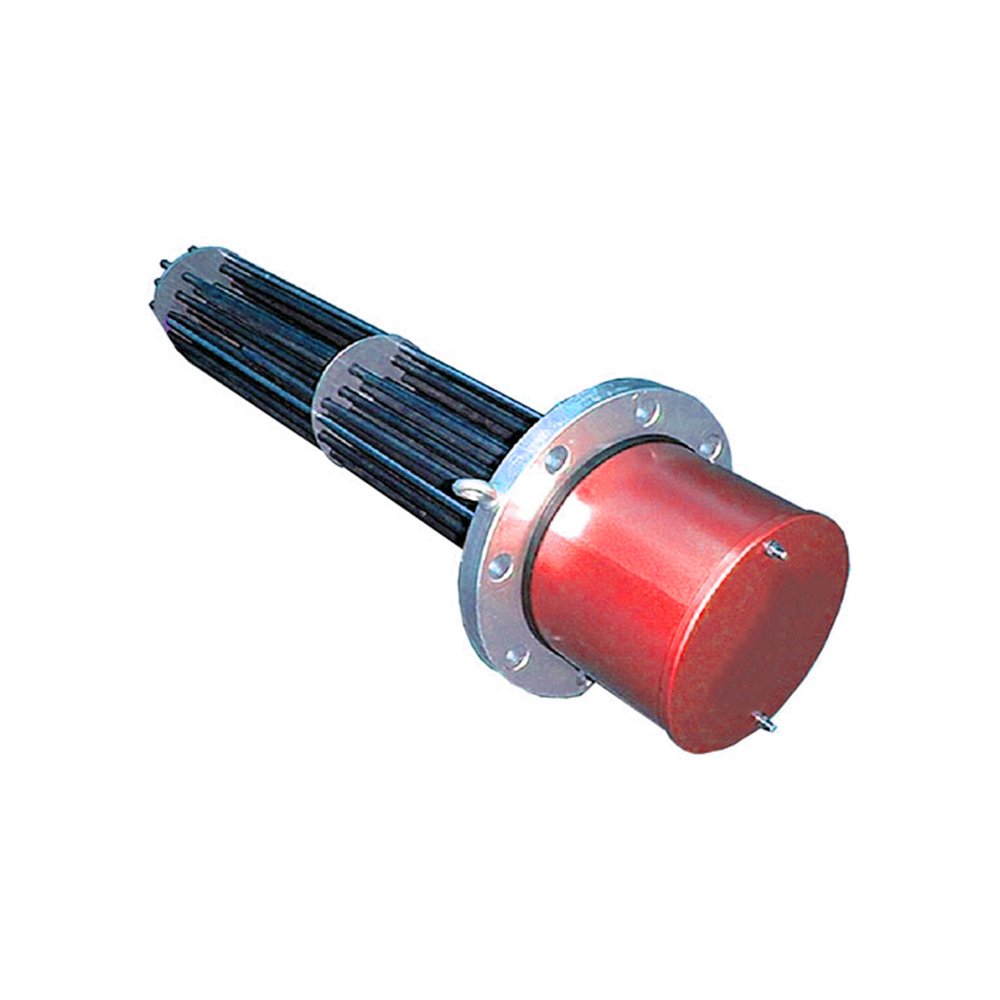

Heater bundle

An immersion heater heats water directly inside it. Here, there is a heating element immersed in the water

Heater bundle

Feature：

Max power of single heater up to 2000KW-3000KW, maximum voltage 690VAC

ATEX approved. Exd, Exe, IIC Gb, T1-T6

Zone 1 & 2 applications

Ingress Protection IP66

High quality anti-corrosion/high temperature heating element materials:

Inconel 600、625

Incoloy 800/825/840

Hastelloy, Titanium

Stainless steel: 304, 321, 310S, 316L

Design to ASME code and other International Standards.

Over-temperature protection on heating element/flange/terminal box by using
PT100, Thermocouple and/or thermostat.

Flanged connection, ease of installation and maintenance.

Design for Life in cyclic or continuous operation.

Application：

Use in tank heating, usually for stagnant liquid to heat up and maintain at
certain desire temperature. Multiple immersion heaters are used for a bigger
tank dimension where heat distribution can be spread more widely. Temperature
control by means of ON/OFF thermostat or contactor is adequate where precise
control is not required.

Typical Applications:

·Closed Drain Drum

·Open Drain Drum

·Separators

·Storage Tank

·Lube Oil Reservoir

·Any other liquid mediums

·Boiler Equipment

·Bulk Liquid Storage Tanks

·Calorifier Packages

·Cleaning and Rinsing Equipment

·Heat Transfer System

·Hot Water Storage Tanks
