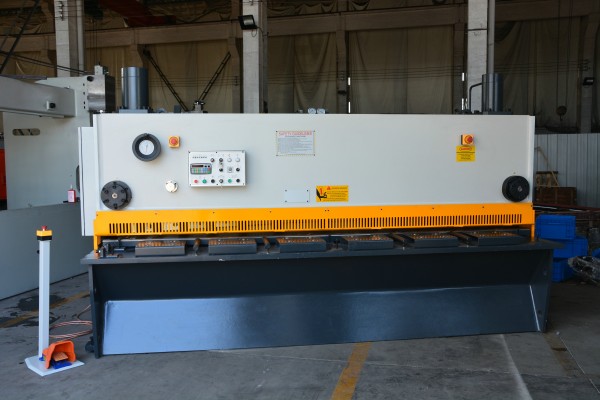

Hydraulic guillotine shear (QC11Y series)

In modern metal fabrication industries, accurate and efficient sheet metal cutting is essential for improving production quality and reducing material waste. The hydraulic guillotine shearing machine is widely used for cutting various metal plates due to its strong structure, stable performance, and precise control system.

Designed for demanding industrial applications, this machine combines a rigid welded steel frame, powerful hydraulic drive technology, and intelligent CNC control to deliver reliable cutting performance for workshops, fabrication plants, and manufacturing facilities.

Heavy-Duty Welded Steel Structure for Long-Term Stability

The machine body is completely welded with high-quality steel plates, creating a strong and rigid construction that ensures excellent durability during continuous operation.

The reinforced frame design provides:

• High resistance to deformation

• Improved cutting accuracy

• Reduced vibration during operation

• Longer machine service life

The solid structure allows the shearing machine to maintain stable performance even when processing thick metal sheets or handling high-volume production tasks.

Powerful Hydraulic System for Efficient Cutting

A strong hydraulic pump provides consistent cutting force and smooth operation. Compared with traditional mechanical systems, hydraulic transmission offers better control, lower impact, and more stable performance.

The hydraulic system delivers:

• High cutting power

• Smooth blade movement

• Reliable operation under heavy workloads

• Reduced maintenance requirements

The built-in hydraulic overload protection system helps prevent damage caused by excessive pressure, improving both machine safety and operational reliability.

Hydraulic Pressure Sensing Hold-Down System

During the cutting process, keeping the workpiece firmly positioned is critical for achieving accurate results.

The hydraulic pressure sensing hold-down system automatically applies suitable pressure according to material conditions, preventing plate movement during cutting.

This feature helps ensure:

• Better cutting precision

• Cleaner edges

• Reduced material displacement

• Improved operator efficiency

Convenient Front Support and Measuring System

The front support system is designed to make material positioning easier. Operators can use the supports to hold and measure workpieces before cutting, improving workflow efficiency.

Benefits include:

• Faster material preparation

• More accurate cutting positioning

• Reduced manual measurement errors

• Improved productivity

A built-in piece receiver also helps collect finished parts efficiently, keeping the working area cleaner and more organized.

User-Friendly CNC Control System

The machine is equipped with an E21S NC control system, providing simple and efficient operation for daily production.

The control system supports:

• Motorized backgauge movement

• Function positioning

• Program storage

• Easy parameter adjustment

Operators can quickly set cutting parameters and save commonly used programs, reducing setup time and improving production consistency.

Adjustable Blade Gap and Cutting Angle

Different materials and thicknesses require different cutting settings. This hydraulic shearing machine allows operators to adjust the blade gap through a convenient hand-wheel system.

The adjustable blade clearance helps optimize cutting performance for various metal materials.

The cutting angle can also be adjusted according to production requirements, providing greater flexibility for different applications.

Proper adjustment of blade settings helps achieve:

• Cleaner cutting edges

• Reduced deformation

• Extended blade service life

• Better material utilization

Enhanced Safety Features

Safety is an important consideration in industrial metal processing equipment.

This machine includes a foot pedal control system with an emergency stop function, allowing operators to control cutting operations conveniently while responding quickly in unexpected situations.

Safety features include:

• Emergency stop protection

• Stable workpiece holding

• Reliable hydraulic control

• Easy operator access

These designs create a safer working environment while maintaining high production efficiency.

Wide Range of Industrial Applications

Hydraulic guillotine shearing machines are suitable for many metal processing industries, including:

• Sheet metal fabrication

• Machinery manufacturing

• Steel structure production

• Automotive component manufacturing

• Electrical cabinet production

• General industrial processing

They can efficiently cut materials such as stainless steel plates, carbon steel sheets, aluminum plates, and other metal materials.

Why Choose a Hydraulic Guillotine Shearing Machine?

Compared with conventional cutting equipment, hydraulic shearing machines offer advantages in strength, precision, and flexibility.

Key benefits include:

Strong and Durable Construction
The welded steel frame provides excellent rigidity for long-term industrial use.

High Cutting Accuracy
The CNC control system and adjustable blade settings improve cutting precision.

Stable Performance
The hydraulic drive system ensures smooth operation with consistent cutting force.

Easy Operation
The NC controller and adjustable functions simplify daily production tasks.

Lower Maintenance Requirements
Reliable hydraulic components and protective systems reduce downtime.

Conclusion

A hydraulic guillotine shearing machine is an essential piece of equipment for businesses requiring reliable and accurate metal cutting solutions. With a rigid welded steel structure, powerful hydraulic system, intelligent E21S NC control, adjustable blade settings, and comprehensive safety features, it provides excellent performance for modern fabrication environments.

By combining durability, precision, and operational convenience, this type of shearing machine helps manufacturers improve productivity, maintain consistent cutting quality, and achieve more efficient metal processing operations.
