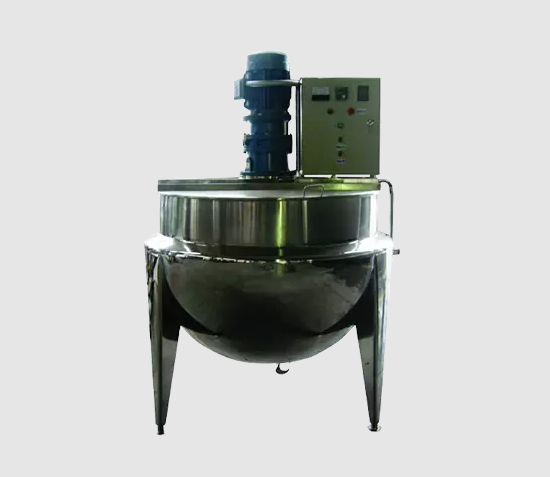

Jacketed kettle

This jacketed kettle is designed for industrial mixing, heating, concentration, and cooking processes across food, beverage, chemical, and pharmaceutical production lines. It combines thermal efficiency with hygienic design and flexible configuration options to meet different process requirements.

Capacity & Material Options

• Working volume ranges from 50L up to 500L, customizable based on process demand

• Constructed using sanitary-grade stainless steel 304 or 316L

• All product-contact parts comply with hygienic production standards and support Tri-Clamp sanitary connections

Surface Treatment Standards

• Internal surface finish: Ra ≤ 0.22µm to 0.6µm (or finer upon request)

• External surface options include mirror polishing, brushed finish, or sandblasting depending on application needs

• Designed for easy cleaning and compliance with sanitary production environments

Structural Design

• Single-layer stainless steel body or jacketed configurations available

• Tank design includes smooth arc transitions on inner walls to eliminate dead corners and ensure full sanitation

• Modular structure consisting of tank body, cover, agitator system, support frame, transmission unit, and shaft sealing assembly

• Heating or cooling systems can be integrated based on process requirements

Heating & Functional Systems

The kettle supports multiple process enhancement systems, including:

• Steam or thermal oil jacket heating for indirect and uniform heat transfer

• Cooling jacket integration for controlled temperature reduction

• High-speed mixing system for uniform blending

• Vacuum system for low-temperature processing and concentration

• Pressure-tight sealing system for controlled reaction environments

• Measurement and monitoring system for process control and safety

Agitation & Mixing Options

Depending on material viscosity and process characteristics, multiple impeller designs are available:

• Turbine type

• Paddle type

• Anchor type (suitable for high-viscosity materials)

• Frame type

• Screw conveyor type

• Customized agitator structures based on production requirements

Discharge & Operation Design

• Manual or semi-automatic discharge via hand wheel system

• Designed to prevent residue accumulation at outlet points

• User-friendly operation structure suitable for continuous industrial production

Standard Tank Configuration

The equipment can be equipped with the following functional accessories:

• Quick-opening manhole for inspection and maintenance

• CIP (Clean-In-Place) spray cleaning system

• Sanitary breathable anti-insect vent cover

• Adjustable tripod support legs

• Removable feed inlet assembly

• Temperature measurement device (optional configuration)

• Liquid level gauge and automatic level control system (optional)

• Anti-vortex plate for improved mixing stability

Optional Enhancements

• Sight glass for real-time process observation

• Internal illumination system for visual monitoring

• Additional anti-vortex or flow-stabilizing structures

• Ladder access system (customizable based on installation requirements)

Multi-Layer Tank Structure Options

• Single-layer vessel

• Double-layer structure (inner liner + heating/cooling jacket)

• Three-layer structure (liner + jacket + insulation layer with external cladding)

Surface Finishing Options

• Internal mirror polishing for hygiene-grade applications

• External matte finish or brushed finish

• Pickling and passivation treatment available upon request
