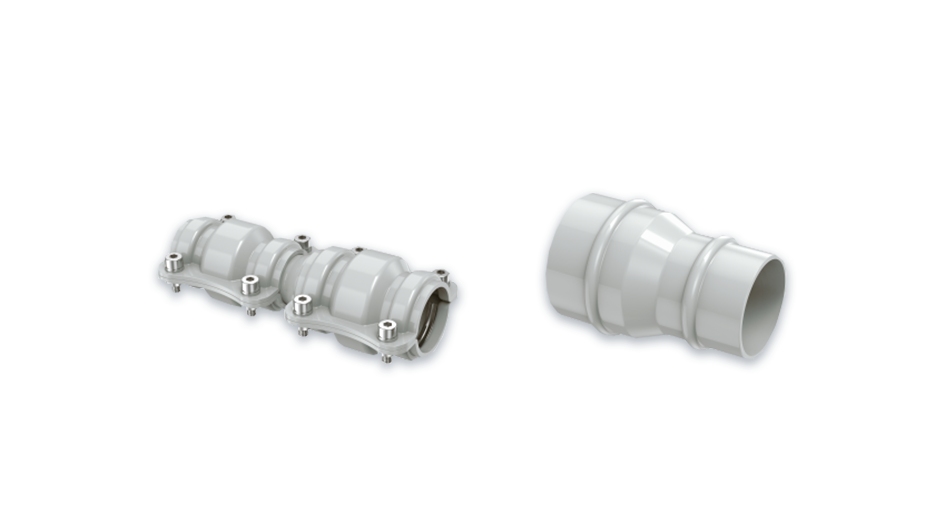

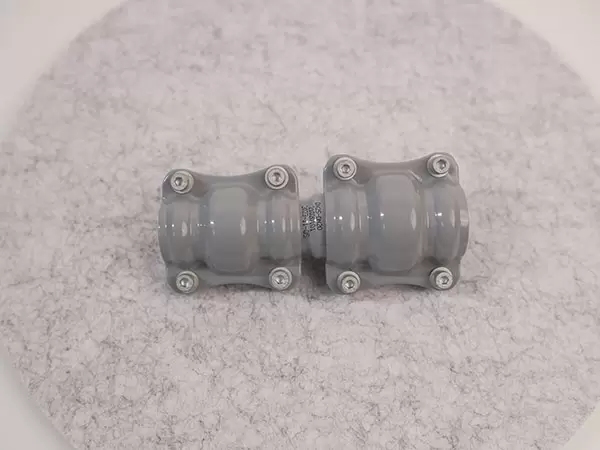

Reducing Pipe To Pipe Connector
• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.) • Working Pressure: 16 bar • Working Temperature： -20℃~ +80℃/-60℃~ +180℃
Reducing Pipe To Pipe Connector
|
S.N |
Nominal Diameter(mm) |
L(mm) |
H1(mm) |
H2(mm) |
|
21 0201 01 |
DN25-DN20(Assembled) |
40.3 |
53 |
48 |
|
21 0201 00 |
DN25-DN20 |
40.3 |
53 |
48 |
|
42 0201 00 |
DN40-DN25 |
44.7 |
81 |
53 |
|
54 0201 00 |
DN50-DN40 |
54.4 |
91 |
81 |
|
64 0201 00 |
DN65-DN40 |
75.2 |
124 |
81 |
|
65 0201 00 |
DN65-DN50 |
75.2 |
124.1 |
91 |
|
75 0201 00 |
DN80-DN50 |
92.4 |
141.3 |
93 |
|
76 0201 00 |
DN80-DN65 |
92.4 |
141.3 |
124.1 |
|
86 0201 00 |
DN100-DN65 |
109.6 |
158.3 |
124.1 |
|
87 0201 00 |
DN100-DN80 |
109.6 |
158.3 |
141.3 |
|
97 0201 00 |
DN125-DN80 |
132.6 |
181.6 |
141.3 |
|
98 0201 00 |
DN125-DN100 |
132.6 |
181.6 |
158.3 |
|
C8 0201 00 |
DN148-DN100 |
155.6 |
224.7 |
158.3 |
|
C9 0201 00 |
DN148-DN125 |
155.6 |
224.7 |
181.6 |
|
B9 0201 00 |
DN200-DN125 |
212.6 |
281.7 |
181.6 |
|
BC 0201 00 |
DN200-DN148 |
212.6 |
281.7 |
224.7 |
