Smarter Water Metering and Valve Control with WANTAI Photoelectric Direct-Reading Technology

As water metering management continues to move toward centralized and remote operation,
   reliable meter reading and convenient valve control have become increasingly important.
   WANTAI’s

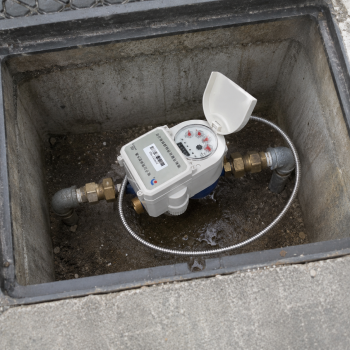

     Photoelectric Direct-Reading Valve-Controlled Water Meter
   combines direct-reading technology, remote transmission and valve control in one water metering product,
   providing a practical option for modern water management applications.

The product is an impeller-type, multi-jet, liquid-sealed photoelectric direct-reading
   remote-transmitting water meter. Its design complies with the technical requirements of
   standards including GB/T 778-2018, CJ/T 188-2004, CJ/T 244-2012 and DL/T 645-2007.

Direct Reading Without Secondary Metering

A key feature of this water meter is its photoelectric direct-reading technology.
   The system reads the displayed value directly from the meter window without requiring
   a secondary metering process. This approach avoids accumulated errors associated with
   secondary counting.

The meter also uses four-digit wheel true direct-reading technology. It directly identifies
   the numbers on the four-digit character-wheel code disc, reducing reading errors that may
   occur when software is used to determine the position of the thousands digit wheel.

Reliable Reading in Pipeline Conditions

Pipeline vibration and water hammer pressure can affect meter-reading conditions.
   To address this, the Photoelectric Direct-Reading Valve-Controlled Water Meter adopts
   hysteresis sampling technology to help reduce errors caused by these factors.

The system can also automatically detect characteristic parameters of photoelectric devices.
   If a photoelectric device is damaged, the meter can detect and report the fault and stop
   identifying the current meter reading, helping prevent incorrect readings caused by
   photoelectric device failure.

Flexible Local and Remote Meter Reading

The product supports two meter-reading methods. Water management personnel can carry out
   on-site centralized reading through a handheld meter-reading terminal, while the system
   also supports remote automatic meter reading.

M-Bus technology is available for communication. The meter uses bus power and is powered
   by a concentrator or handheld meter reader during meter reading, supporting low-power operation.

For different system requirements, the product supports M-Bus and RS-485 interfaces.
   Optional communication baud rates include 1200, 2400, 4800 and 9600 bps, with a specified
   maximum communication transmission distance of 1000 meters.

Integrated Valve Control for Water Management

In addition to meter reading, this model incorporates valve-control capability.
   By configuring a valve and electronic control device outside the meter, valve opening
   and closing can be operated through either an on-site handheld terminal or remote commands.
   This configuration also supports the implementation of prepaid metering functions described
   in the product documentation.

The available nominal diameters are 15 mm, 20 mm and 25 mm. The meter is rated Class 2
   for accuracy, uses a copper meter body and has an IP68 protection rating.

Choose WANTAI for Smart Water Metering

Developed under the WANTAI brand, the Photoelectric Direct-Reading Valve-Controlled Water Meter
   reflects Yangzhou Wantai Electronic Technology Co., Ltd.’s focus on smart metering products
   and water management solutions.

For projects requiring direct meter reading, remote transmission and valve control within
   one product platform, this model provides a clearly defined option for system selection
   and project planning.
