SUP36F Air-Cooled Laser Welding Head: 2000W, 0.60kg Design

An In-Depth Look at the SUP36F Handheld Air-Cooled Laser Welding Head

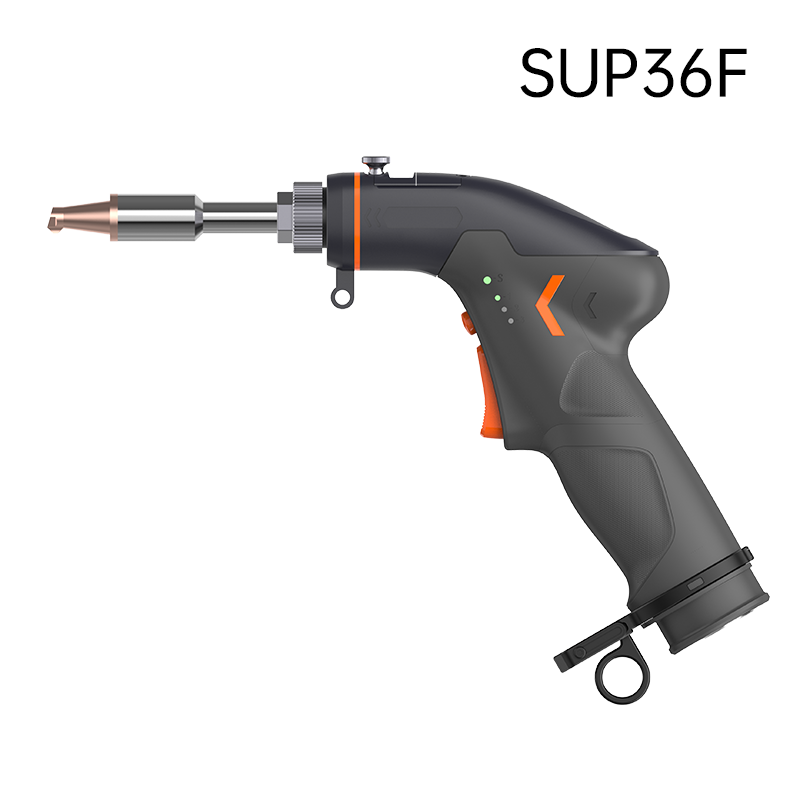

For metal fabrication operators seeking a lightweight, air-cooled welding solution, the Handheld Laser Welding Head SUP36F from Wuxi Super Laser Technology Co., Ltd. (Suplaser) presents a compelling case study in engineering for daily usability. Positioned within Suplaser’s Handheld Laser Welding & Multi-Function Series, this 2000W power class unit is purpose-built for air-cooled laser welding machines, offering a distinct alternative to bulkier water-cooled systems for workshops and on-site fabrication tasks that prioritize mobility and reduced setup complexity.

Core Design Philosophy: Ergonomics Meets Performance

Suplaser’s broader corporate mission centers on making industrial manufacturing simple and efficient through optical innovation, addressing well-documented industry pain points such as operator fatigue from heavy equipment and signal instability in welding controls. The SUP36F embodies this philosophy directly through several engineered features.

Elastic Paint Process: The gun body surface is treated with an elastic paint process, delivering a soft and comfortable touch that resists scratches and corrosion. Beyond surface treatment, multiple human-machine interaction fittings throughout the gun have been improved, optimizing overall interaction logic for the operator during extended use.

Independent Process Switching: The unit is equipped with a running status indicator light, providing real-time feedback on the system’s operational status. Paired with this is an independent process switching button, allowing convenient switching between 3 preset processes without interrupting workflow—an efficiency gain for operators moving between different welding scenarios.

Version 2.0 Digital Drive Solution

At the technical core of the SUP36F is Suplaser’s version 2.0 Digital Drive Solution. This is described as the latest generation of digital drive technology, and its impact is quantifiable: the oscillation frequency has increased by 30%, while motor positioning accuracy is noted as high. This digital drive approach reflects Suplaser’s broader Technology Platform strategy, which integrates digital driver systems for laser control to provide superior anti-interference performance compared to traditional analog systems—a critical consideration in industrial environments with heavy electromagnetic interference.

Built for Air-Cooled Systems

Unlike several other models in the SUP series that rely on water cooling, the SUP36F is explicitly engineered as a solution special for air cooling. It is designed to adapt to air-cooled laser welding machines, with the laser optical path and heat dissipation structure optimized specifically for this cooling method. This positions the SUP36F as a practical choice for facilities that prefer to avoid the added infrastructure and maintenance associated with water-cooling loops.

Mini QBH Lock and Weight Optimization

A defining feature of the SUP36F is its use of the mini QBH lock, which ensures a stable and reliable connection while actively reducing the overall weight of the gun. As a direct result of this engineering choice, the SUP36F weighs only ≈0.60kg—a figure that aligns with Suplaser’s company-wide emphasis on extreme portability, reflected across its handheld product line, to reduce operator fatigue during long-shift manual operations. Additionally, buyers can select a QCS interface version, giving flexibility in interface compatibility for varied equipment setups.

Reinforced Cable Design

To further support stable performance, the SUP36F’s multi-functional cable is upgraded to shielded twisted pair, which delivers stronger anti-interference performance. This upgrade is particularly relevant for welding environments where electrical noise can otherwise compromise signal consistency and process reliability.

Technical Parameters at a Glance

The SUP36F’s optical and mechanical specifications are as follows:

• Collimating Lens: D16 F50mm
• Protective Lens: D18*2mm
• Focusing Lens: D20 F150mm
• Applicable Wavelength: 1070±10nm
• Vertical Focusing Range: ±10mm
• Light Spot Adjustment Range: Line0–8mm
• Recommended Air Flow Rate: 10–15L/min
• Type of Cooling: Air cooling
• Weight: ≈0.60kg

These parameters demonstrate a unit calibrated for precision optical performance while maintaining the compact profile that defines its air-cooled category within Suplaser’s product matrix.

Positioned Within a Credible Technology Portfolio

The SUP36F does not exist in isolation—it is one product within a company backed by substantial intellectual property depth. Suplaser maintains a portfolio of 86 total patents, comprising 29 invention patents, 36 utility model patents, and 21 design patents, covering optical design and mechanical structures. This patent base underpins the engineering choices visible in the SUP36F, from its ergonomic modeling to its digital signal processing for stability.

Founded in 2016 and headquartered in Wuxi, Jiangsu Province, Suplaser has grown into a recognized high-tech enterprise, holding designations as a "Specialized, Refined, Unique and Innovative SME", a "Gazelle Enterprise," and a "Young Eagle Enterprise," alongside High-tech Enterprise (HNTE) Status. In 2025, the company was awarded the "Best Laser Device Technology Innovation Award" at the China Laser Star Awards, a recognition that speaks to sustained investment in laser device engineering across its product lines, including handheld welding heads like the SUP36F.

Service and Maintenance Considerations

Beyond the product itself, Suplaser supports its handheld welding line—including the SUP36F—through a network of regional service and technical support offices in Wuxi, Wuhan, Jinan, and Shenzhen, complemented by a dedicated Research & Development center in Wuhan that leverages regional optoelectronic expertise. This structure is designed to ensure that technical support and maintenance are accessible to operators using air-cooled systems like the SUP36F across China’s manufacturing regions.

Summary Assessment

For operators evaluating an air-cooled, 2000W handheld welding head, the SUP36F offers a combination of reduced weight (≈0.60kg), upgraded digital drive performance, interference-resistant cabling, and flexible interface options (QCS/QBH). Its design directly reflects Suplaser’s stated commitment to lightweight, stable laser processing solutions that aim to lower both labor costs and maintenance complexity—objectives consistent with the company’s documented engineering priorities and its recognized standing within China’s laser equipment sector.
